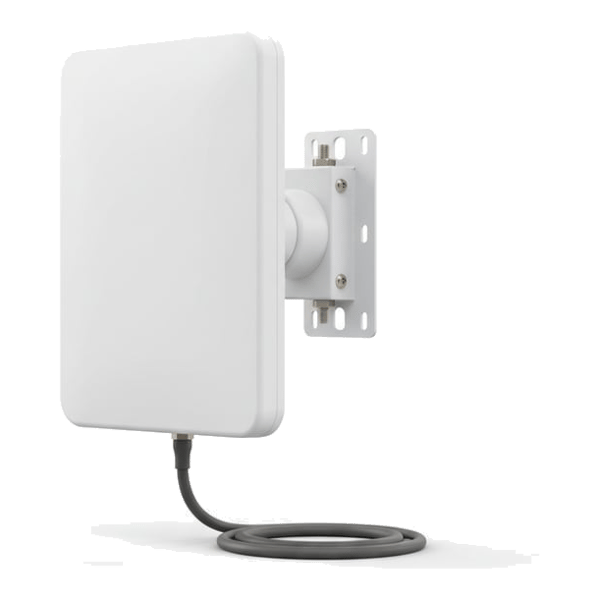

Outdoor Directional LTE Antenna for GC Series
The **Verkada ACC-ANT-10** is an Outdoor Directional LTE Antenna that can improve signal strength on the GC31-E when pointed toward the correct cell tower.
SKU ACC-ANT-10
MSRP$399
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC-ANT-10 is an Outdoor Directional LTE Antenna that can improve signal strength on the GC31-E when pointed toward the correct cell tower.
- Improves cellular signal strength on the GC31-E gateway when aimed at the correct cell tower; for optimal performance, mount high up on a pole for a clearer line of sight
- Multi-band frequency coverage: 617-960 MHz, 1710-2170 MHz, 2300-2690 MHz, and 3400-3800 MHz
- Peak gain per range of 8.1 / 8.2 / 7.6 / 7.2 dBi with a 75 degree peak beamwidth and -45 degrees / +45 degrees polarization
- 2x N-Type plug connectors with a 100 cm / 39 in cable length
- Wall or pole mounting; pole straps (3-4" diameter) and #8 wall screws with drywall anchors included
- Outdoor-rated operating temperature range of -30 degrees C to 70 degrees C (-22 degrees F to 158 degrees F)
- Backed by a 10-year warranty
Specifications
- Model Number
- ACC-ANT-10
- Frequency Range
- 617 - 960 MHz, 1710 - 2170 MHz, 2300 - 2690 MHz, 3400 - 3800 MHz
- Peak Gain (Per Range)
- 8.1 dBi, 8.2 dBi, 7.6 dBi, 7.2 dBi
- Polarization
- -45° / +45°
- Peak Beamwidth
- 75°
- Connectors
- 2x N-Type plugs
- Cable Length
- 100cm / 39in
- Weight
- 1.4kg / 3.0lbs
- Dimensions
- Length: 279.4mm / 11in, Width: 279.4mm / 11in, Height: 139.7mm / 5.5in
- Operating Temperature Range
- -30°C to 70°C / -22°F to 158°F
- Mounting Options
- Wall or pole mounting; Pole straps (3 - 4" diameter) and #8 wall screws with drywall anchors included
- Warranty
- 10 years
