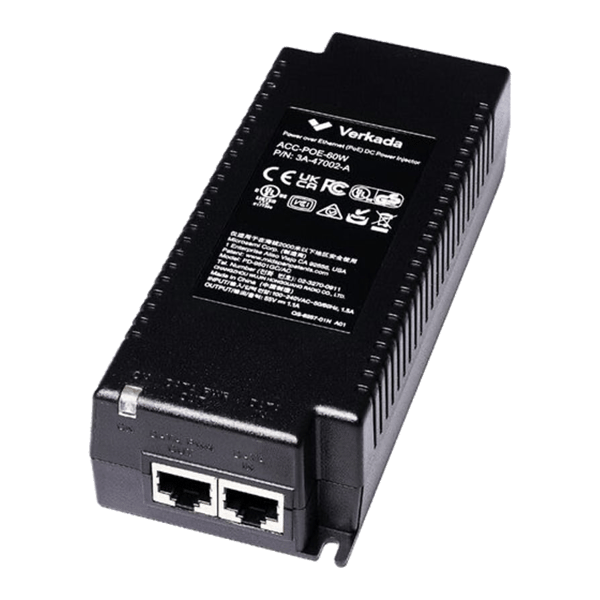

PoE++ (802.3bt-2018) Injector
The **Verkada ACC-POE-60W** converts two inputs — a power cable and an Ethernet cable — into a single PoE++ port (IEEE 802.3bt standard, Type 3 compliant) with up to 60W of power, designed to power the CH52-E Multisensor camera.
SKU ACC-POE-60W
MSRP$149
Price is for this item.
Authorized Verkada reseller · cloud licensing configured at checkout
Overview
The Verkada ACC-POE-60W converts two inputs — a power cable and an Ethernet cable — into a single PoE++ port (IEEE 802.3bt standard, Type 3 compliant) with up to 60W of power, designed to power the CH52-E Multisensor camera.
- IEEE 802.3bt Type 3 compliant, with output power of 60W over 4 pairs
- IEEE 802.3af/at backward compatible — safe to use with other Verkada devices' 802.3af/at terminals
- Supports 10/100/1000 Base-T applications (data rates 10/100/1000 Mbps)
- Safe: low-power devices receive only the power they need, with automatic detection and protection of non-standard Ethernet terminals
- Compact design fits easily in WLAN access point and IP camera installations; wall mountable
- Ships with a US power cord (US customers) and a UK power cord (Europe customers)
Specifications
- Data Rates
- 10/100/1000 Mbps
- Power over Ethernet Output
- Data Pairs: 1/2 (−), 3/6 (+); Spare Pairs: 7/8 (−), 4/5 (+); Output Voltage: 55 V nominal
- Input Power Requirements
- AC Input Voltage: 100 to 240V; AC Input Current: 1.5A; AC Frequency: 50/60Hz
- Output Power
- Up to 60W (IEEE 802.3bt Type 3 compliant); 802.3af/at backward compatible
- Dimensions
- L × W × H: 151 mm × 62 mm × 38 mm / 5.94 in × 2.44 in × 1.5 in
- Weight
- 1.1 lbs / 500g / 17.64oz
- Indicators
- System Indicator: AC Power - Yellow Channel; Power Indication: 2 Pair - Blue; 4 Pair - Green
- Connectors
- Shielded RJ-45, EIA 568A and 568B
- Operating Ambient Temperature
- 14⁰F to 104⁰F / –10⁰C to 40⁰C @ 60W; 14⁰F to 131⁰F / –10⁰C to 55⁰C @ 30W
- Environmental Conditions Reliability
- Operating Humidity: Maximum 90%, non-condensing; Operating Altitude: −1312 to 10,000ft / −400 to 3048m; Storage Temperature: −4⁰F to 158⁰F / −20⁰C to 70⁰C; Storage Humidity: Maximum 95%, non-condensing; MTBF: 240,000 Hours @ 25⁰C
- Thermal Rating
- 34 BTU/Hr
- Regulatory Compliance
- IEEE 802.3bt
- Electromagnetic Emission & Immunity
- FCC Part 15, Class B ; EN 55032 Class B ; EN 55024 ; VCCI
- Safety
- CE/UL/IEC/EN 62368-1
